Liquid Metal Shield – Conformal Coating
$9.99

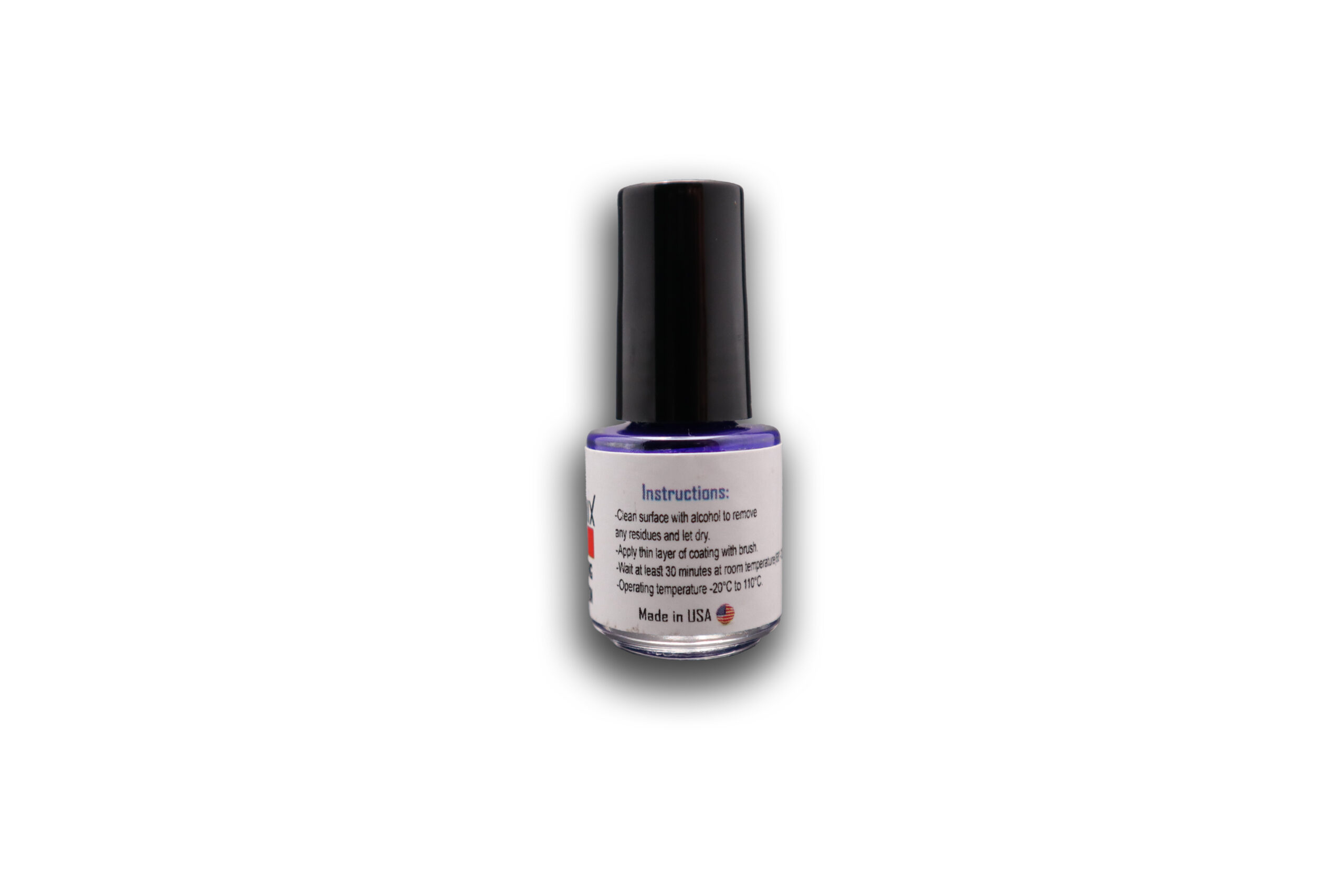

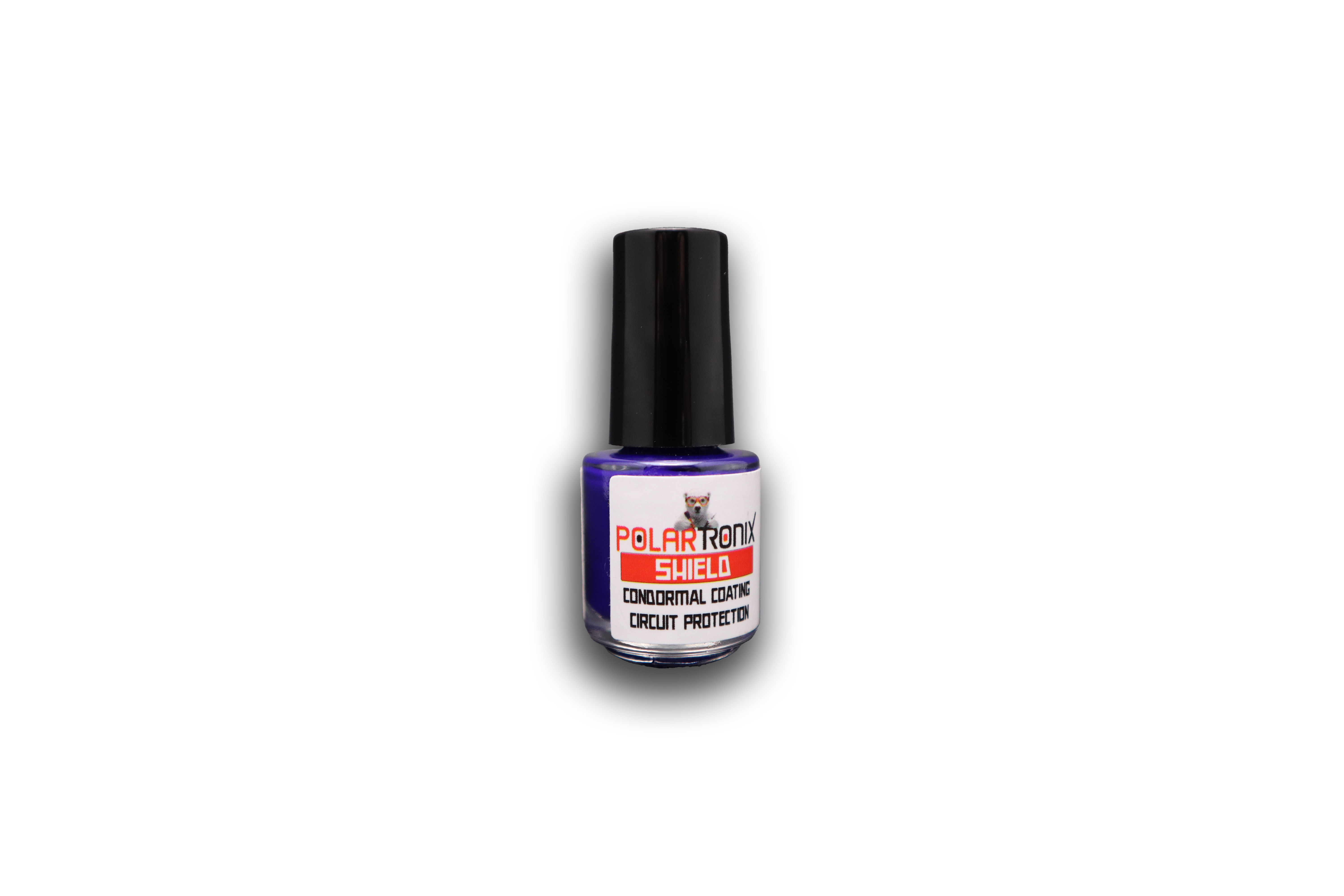

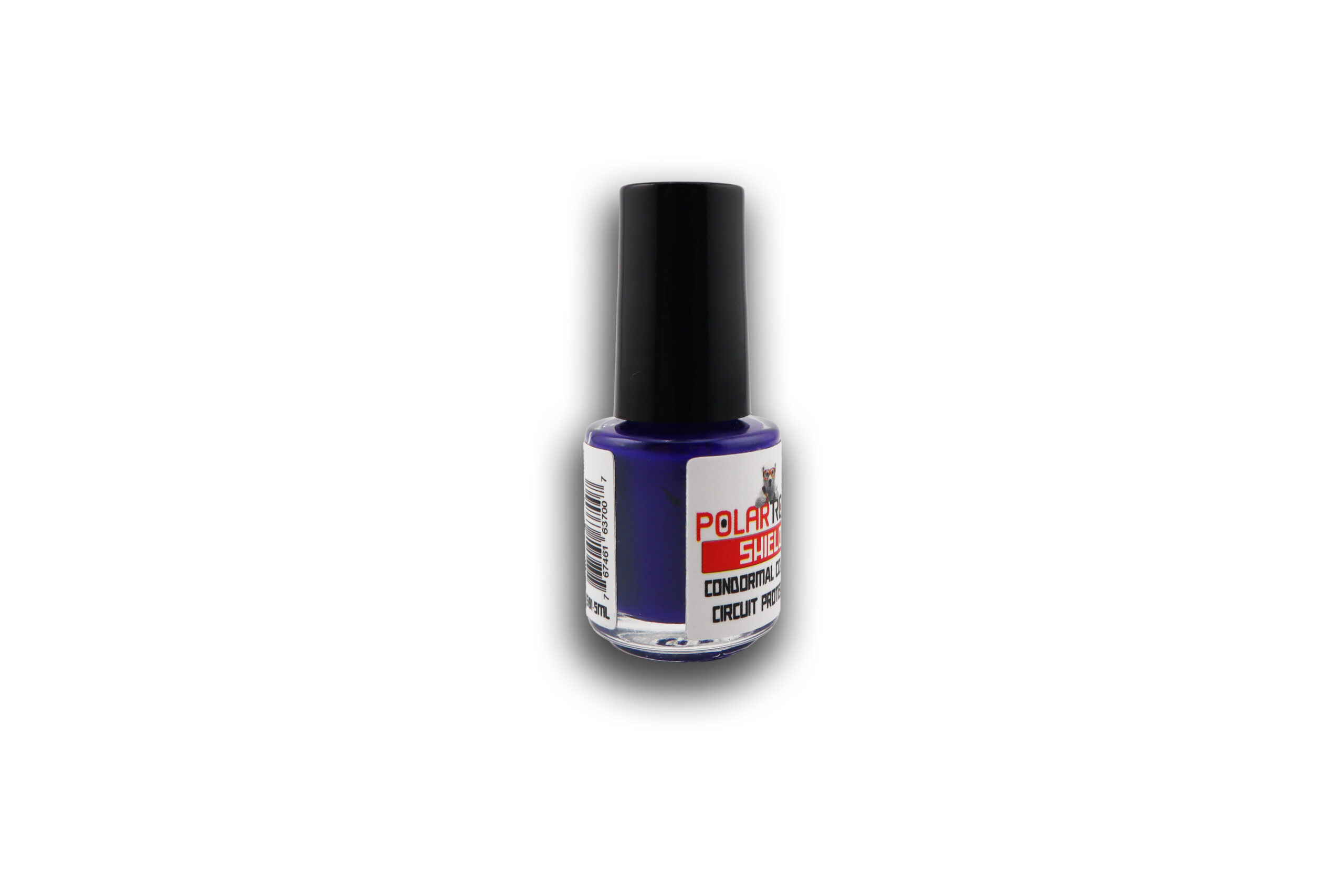

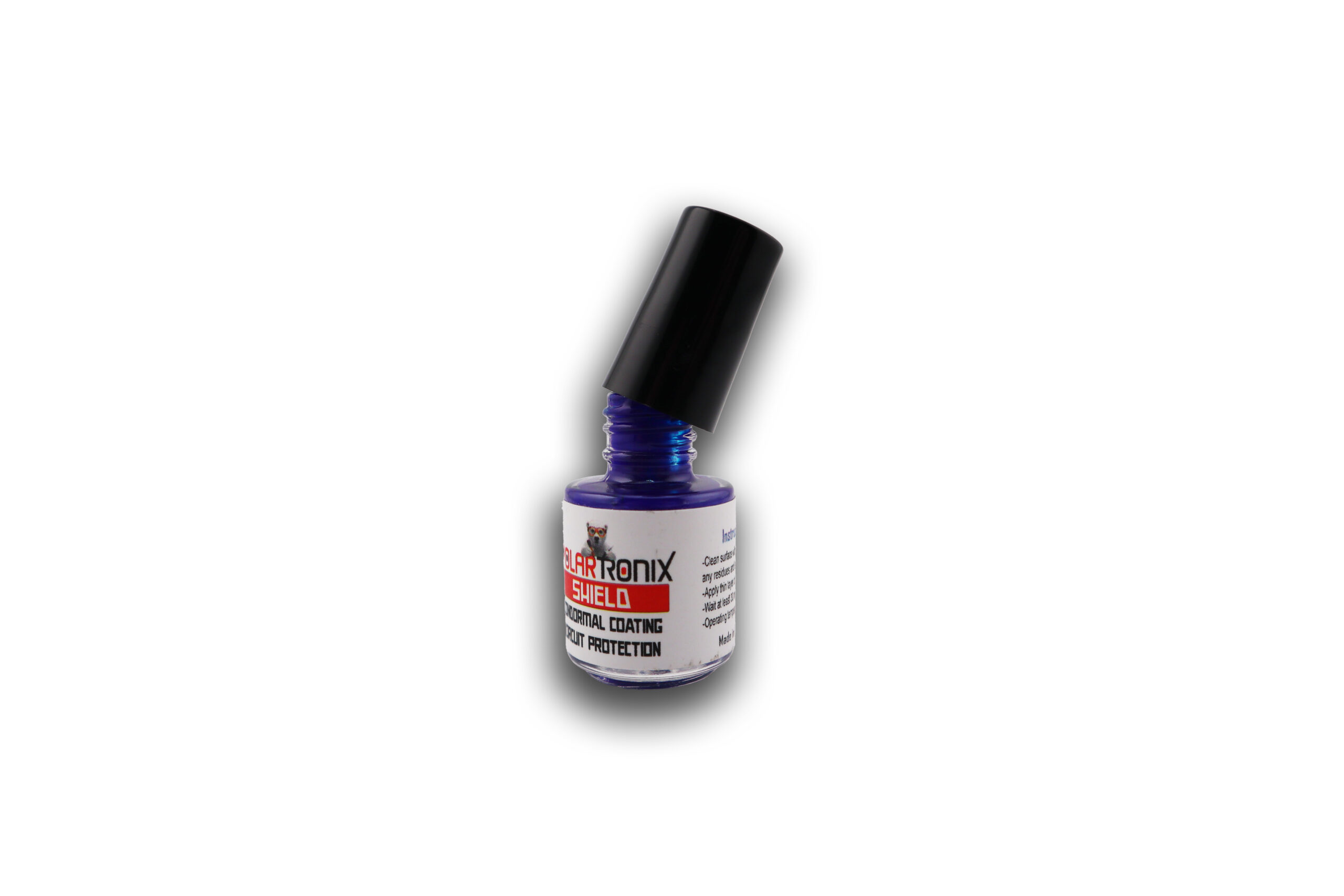

PolarTronix Liquid Metal Shield is a precision conformal coating designed to create a protective barrier around CPUs, GPUs, PS5 APUs, and other liquid metal application areas. The built-in brush applicator makes it easy to coat exposed components around the processor before applying electrically conductive liquid metal. Dries in approximately 30 minutes for a clean, controlled application.Overview
PolarTronix Liquid Metal Shield – Conformal Coating
Liquid metal provides exceptional thermal performance, but because it is electrically conductive, protecting the surrounding electronics is an important part of a controlled application.
PolarTronix Liquid Metal Shield is a conformal coating designed to create a protective barrier around processors and other areas where liquid metal thermal compounds are being applied.
Added Protection for Liquid Metal Applications
Apply Liquid Metal Shield around exposed components surrounding a CPU, GPU, or APU before applying liquid metal. Once cured, the coating creates an insulating protective layer over the treated area.
This provides an additional layer of protection if a small amount of liquid metal moves beyond the intended thermal contact surface.
Ideal for PS5 Liquid Metal Repair
Liquid Metal Shield is especially useful during PS5 liquid metal replacement and repair. The coating can be applied around the APU and nearby exposed components as part of surface preparation before replacement liquid metal is installed.
It is also suitable for compatible gaming laptops, CPUs, GPUs, and other electronics where liquid metal is used as the thermal interface material.
Built-In Precision Brush

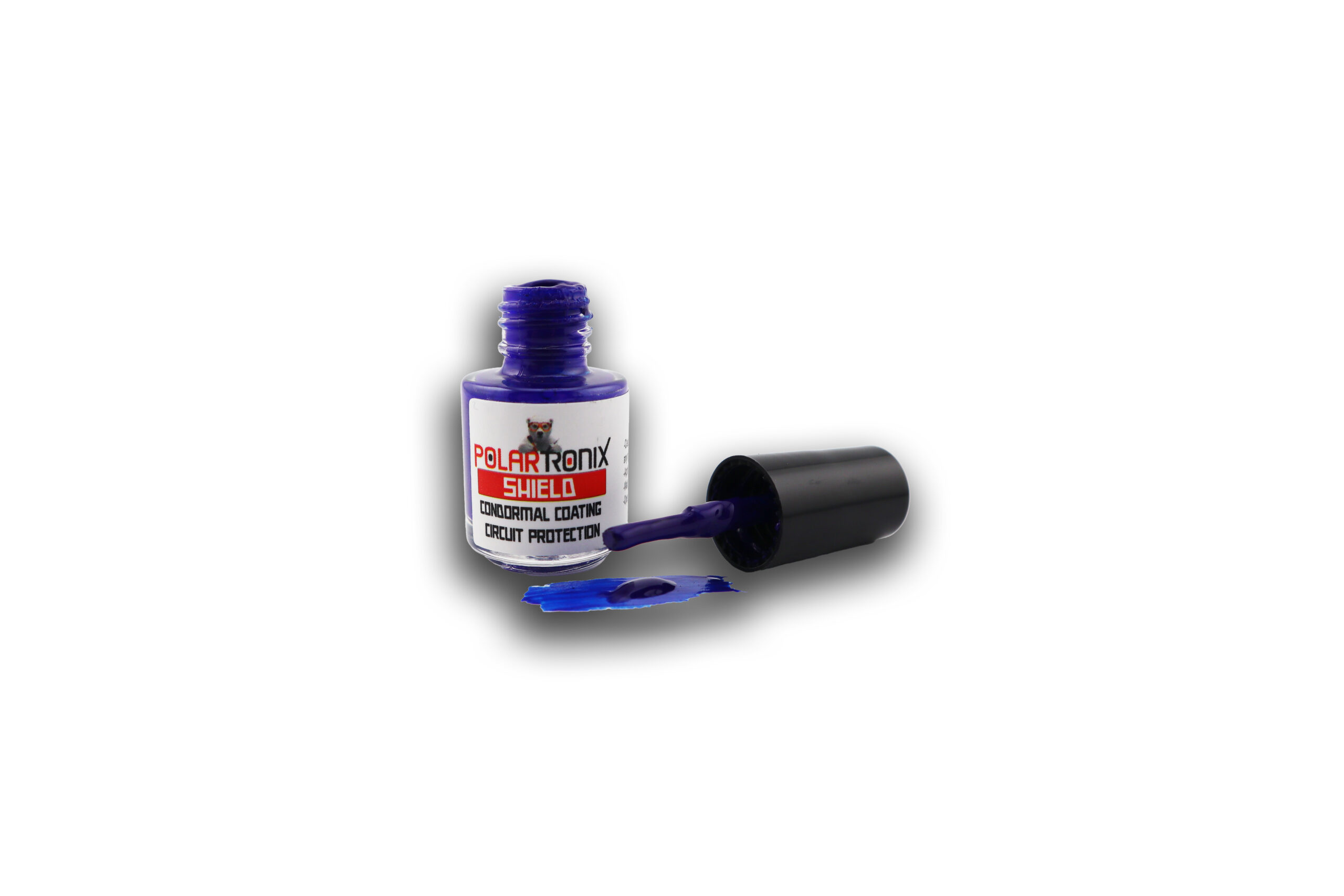

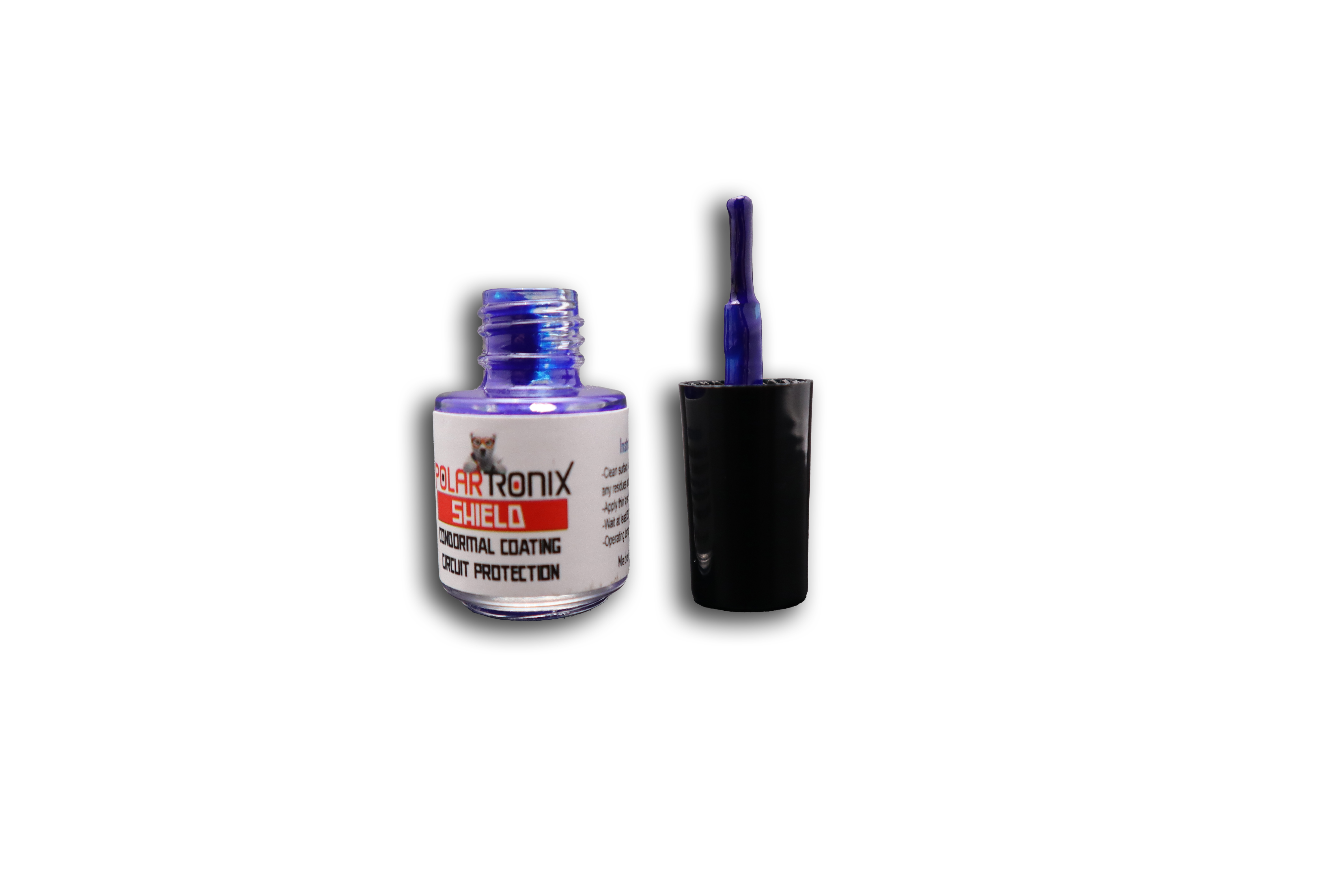

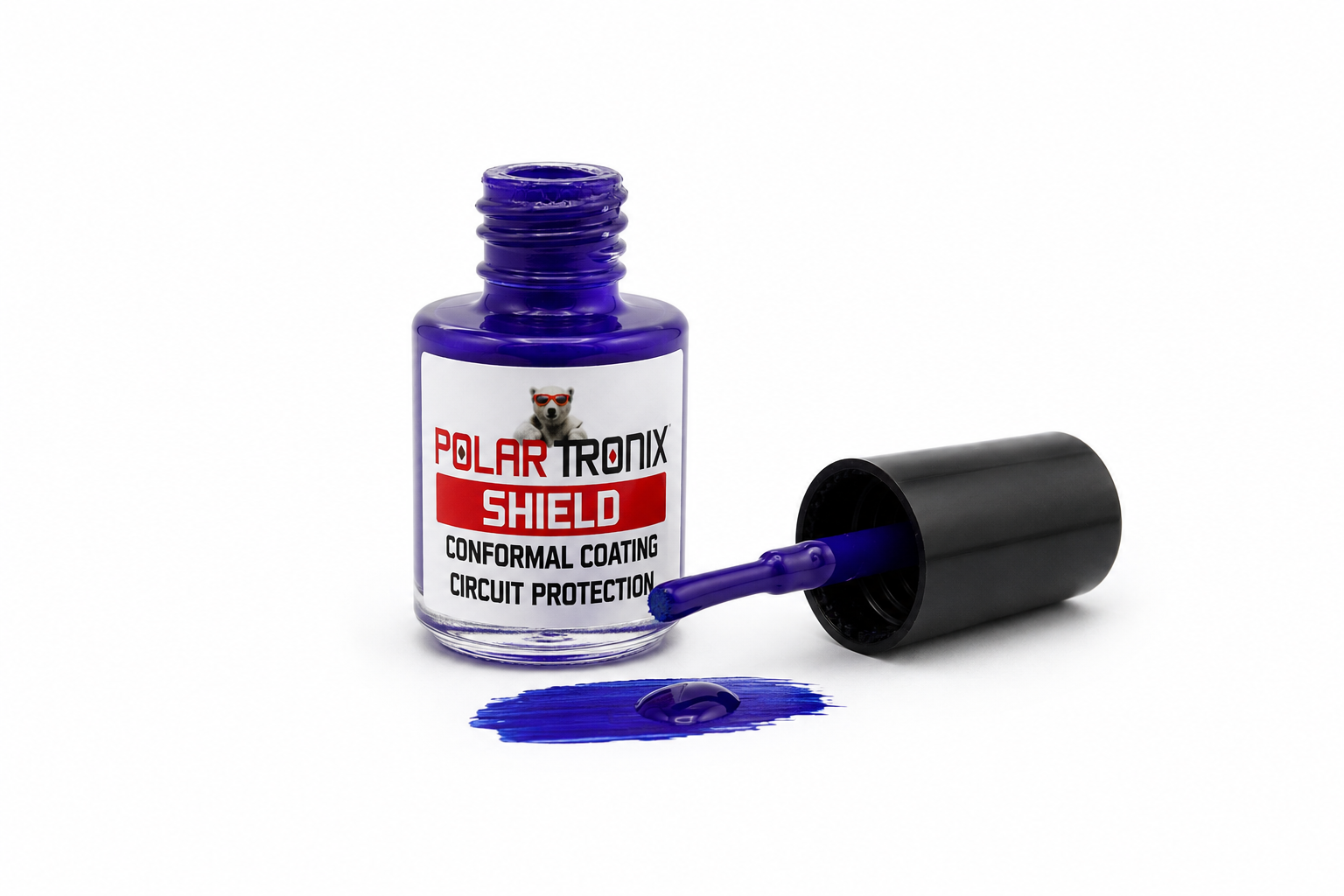

The bottle includes an integrated brush applicator, allowing technicians to apply the coating precisely where protection is needed without requiring a separate brush.
Apply a controlled layer over the desired area and allow it to fully cure before proceeding with liquid metal application.
Key Features
Designed for liquid metal applications
Creates a protective insulating barrier
Helps protect surrounding electronic components
Ideal for PS5 APU liquid metal repair
Suitable for compatible CPU and GPU applications
Built-in brush applicator
Approximately 30-minute cure time at normal room temperature
5 mL bottle
Operating temperature range: -20°C to 110°C
Designed for professional electronics repair
Recommended Applications
PS5 APU protection
Liquid metal replacement
Gaming laptop liquid metal servicing
CPU and GPU liquid metal applications
Motherboard component protection
Electronics repair and rework
Important
Allow the coating to fully cure before applying liquid metal. Liquid Metal Shield is intended as an additional protective barrier and does not replace proper liquid metal application procedures.
Liquid metal remains electrically conductive and should always be applied carefully in a very thin, controlled layer. Avoid excessive application and keep liquid metal within the intended thermal interface area.
For best results, make sure the application surface is clean, dry, and free of contaminants before applying the coating.
PolarTronix – Advanced Thermal Solutions for Electronics.
Specifications
- upc
- 767461637007
